Enrico Fermi's Golden (Slide) Rule
What slide rules did Enrico Fermi use? A family member gives us insight.
In early 2021 I wrote a version (mostly identical) of the story below for my web page. That version was spurred on by a discussion with the Facebook Slide Rule Fan Club, when I was asked, “You work at Fermilab. What type of slide rule did Enrico Fermi use?” Not knowing the answer, I set out to see what I could find out that might give us some insights. The result was my “vignette”, reproduced below, as well as a talk on the subject at the September 2022 International Meeting of Collectors and Researchers of Slide Rules and other Historic Computing Instruments. The talk included new information revealed after many communications with Enrico Fermi’s granddaughter, for which I was very thankful. This week the paper provided to the conference was published in the Journal of the Oughtred Society.1
Following the Rules vignette, originally posted: 2021 Feb 05
Enrico Fermi, the famous Italian-born physicist often referred to as the “architect of the nuclear age”, arguably was one of the last modern physicists to excel professionally in both theoretical physics and experimental physics. He was also noted for always having access to a slide rule, often from his suit coat pocket.
Born in Rome in 1901, Fermi received his laurea (equiv. PhD) at the age of 20, became a professor in Rome in 1926 and was awarded the Nobel Prize in physics in 1938 for his work on induced radioactivity. Later that same year he left Italy with his wife of 10 years, Laura. He eventually arrived in New York in 1939 where he was greeted with 5 job offers at competing universities. He accepted the position at Columbia University in NYC, but in 1941, moved to the University of Chicago, prompted by efforts on the Manhattan Project during WWII.
A remote location in Argonne Woods, outside of Chicago, was selected as the construction site for the first nuclear reactor; but an industrial dispute halted the work there. Not deterred, Fermi convinced the university that it was safe to build the demonstration reactor on campus — and so a new location underneath the bleachers of the football field was chosen and the first sustained nuclear reaction was achieved in 1942. And the rest, as they say, was history.
Several photographs and images of Fermi with a slide rule exist, several of which can be found on the ISRM site.2
However, these photographs never reveal the make or model of the rules that Fermi used. Did he have a favorite? Was it a common rule or a specialty model? It was clear that he used several different slide rules, as would be expected, since some accounts tell of his use of a “6-inch” model, and other images clearly show standard 10-inch rules.

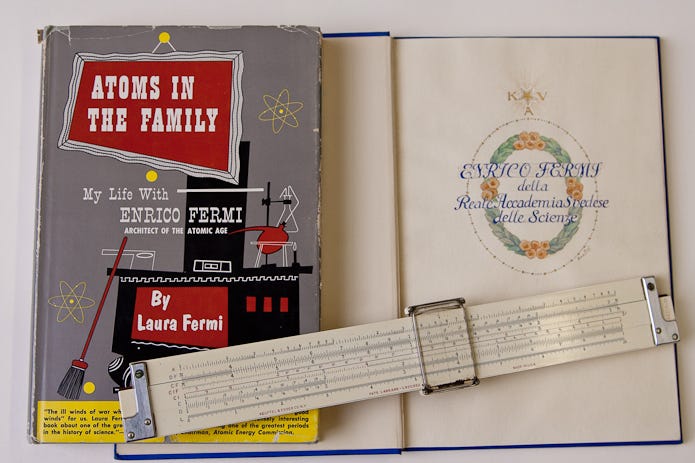

In 2010 Fermi’s granddaughter, Olivia Fermi, gave a presentation in Vancouver, British Columbia, Canada, which was reviewed in the Vancouver Observer3. The article provides a photo of Olivia holding “the slide rule used by her grandfather, Enrico Fermi.” Her web site also contained a reference to the event, along with a photograph of her grandmother Laura’s book, Atoms in the Family4. This photo also contains the same slide rule.

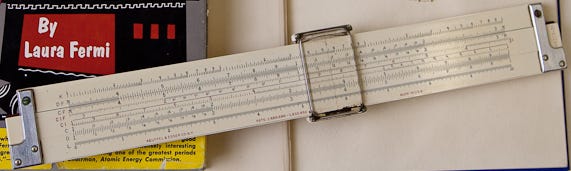

A close-up of the slide rule (see below) reveals that it is a Keuffel and Esser. And, from the scales on the rule — K DF [ CF CIF CI C ] D L — it is clear that it is a K&E Model 4092-3, the only K&E with this particular set of scales on either side of the rule. The original 4092 in 1909 was the first K&E model to introduce a segmented Log-Log scale, allowing quick calculations of exponential growth and raising numbers to arbitrary powers. The addition of an “LL0” scale for even finer calculations of initial exponential growth was made in about 1915, and the rule was renamed 4092-3 in about 1922, to differentiate it from the longer 20-inch model (4092-5).5 These features would have been very important for the calculations and data analyses performed by Fermi at that time. A K scale was added to this model in about 1925 and, interestingly, the 4092-3 was discontinued in 1937, the year before Fermi was awarded the Nobel.
The image shows the sans serif type used in the lettering of the scales as well as the K scale at the top, which helps to date this rule from between 1925 and 1937. If one could get a glimpse of the other side of the rule, a serial number would help to determine the exact year of construction.

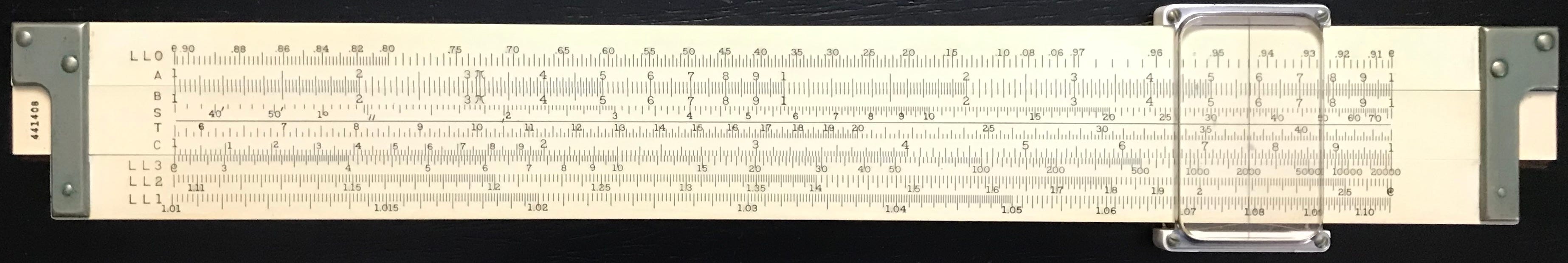

While this is not the only slide rule that Fermi used professionally, it is the only identifiable slide rule I’ve been able to find that was definitely used by Fermi. It was considered a very powerful slide rule in its day, and became a fairly popular model at that time. And because examples of the late 4092-3 can be readily found, it is also fair to say that many of us collectors own the same model slide rule as that used by Enrico Fermi! Here are pictures of one from my collection:
Fermi’s actual Golden Rule
Though slide rules were ubiquitous among physics professors and students during the dawn of the nuclear age, the term “Fermi’s rule” had a very different meaning to graduate students of physics, having nothing to do with slide rules. In the area of quantum mechanics, Fermi’s Golden Rule is an equation that describes the rate of transition from one initial quantum state to another final quantum state:
Its derivation (along with the meaning of the various symbols!) can be found in many introductory textbooks on quantum mechanics.6 Although Fermi’s Golden Rule was not referring to a slide rule, they certainly were used in its evaluation for many decades.
Happy computing!
Postscript: After writing the above I made contact with Enrico Fermi’s granddaughter, Olivia Fermi, and learned much more about this slide rule and another one owned by Enrico. For more information, see the talk delivered at the International Meeting of September 2022, and its companion paper published in the Journal of the Oughtred Society.
a link to the talk at the International Meeting of 2022
a link to the paper (accessible to members of the Oughtred Society), based upon the above-mentioned talk
Olivia also shared with me recently a short anecdote shared with her that was written by Ugo Fano in 1997 as part of his personal archive – Enrico certainly did carry around a 5-inch slide rule in his pocket! Perhaps someday we will find out which make and model.
For further information about the K&E 4092-3, also read the vignette Rule Change 4092-3. And for a nice account of Fermi and the first atomic pile, read The First Reactor, which can also be found here.
“Fermi’s Golden (Slide) Rule”, Jour. Oughtred Soc., 33.2 p36 (2025).
Visit International Slide Rule Museum, click on Photos/Ads —> People W/ Slide Rules.
Olivia Fermi discusses her family’s nuclear legacy on the “Neutron Trail”, by Emily Barca, Vancouver Observer, 12 Nov 2010.
Atoms in the Family: My Life with Enrico Fermi, by Laura Fermi, University of Chicago Press, Chicago (1954).
See Kate Mathews, The Evolution of the 4092, Journal of the Oughtred Society, 10:2 (2001).
An early reference by Fermi to this equation as a “golden rule” is found in Nuclear Physics, E. Fermi, University of Chicago Press, Chicago, p142 (1950).
